LED Linear High Bays 09 Series

The LED Linear High Bays 09 Series offers powerful, efficient lighting in a low-profile design ideal for warehouses, gyms, and commercial ceilings. Available in 165W, 220W, and 300W adjustable models, it delivers up to 42,000 lumens with 0–10V dimming and CCT options of 4000K or 5000K. Each unit includes a sensor base, supports AC120–277V input, and is housed in a sleek white steel or aluminum body. UL listed and DLC Premium certified for performance and reliability.

PRODUCT FEATURES

Lmileds leds, lifud driver
Color and power selectable
Smart controls

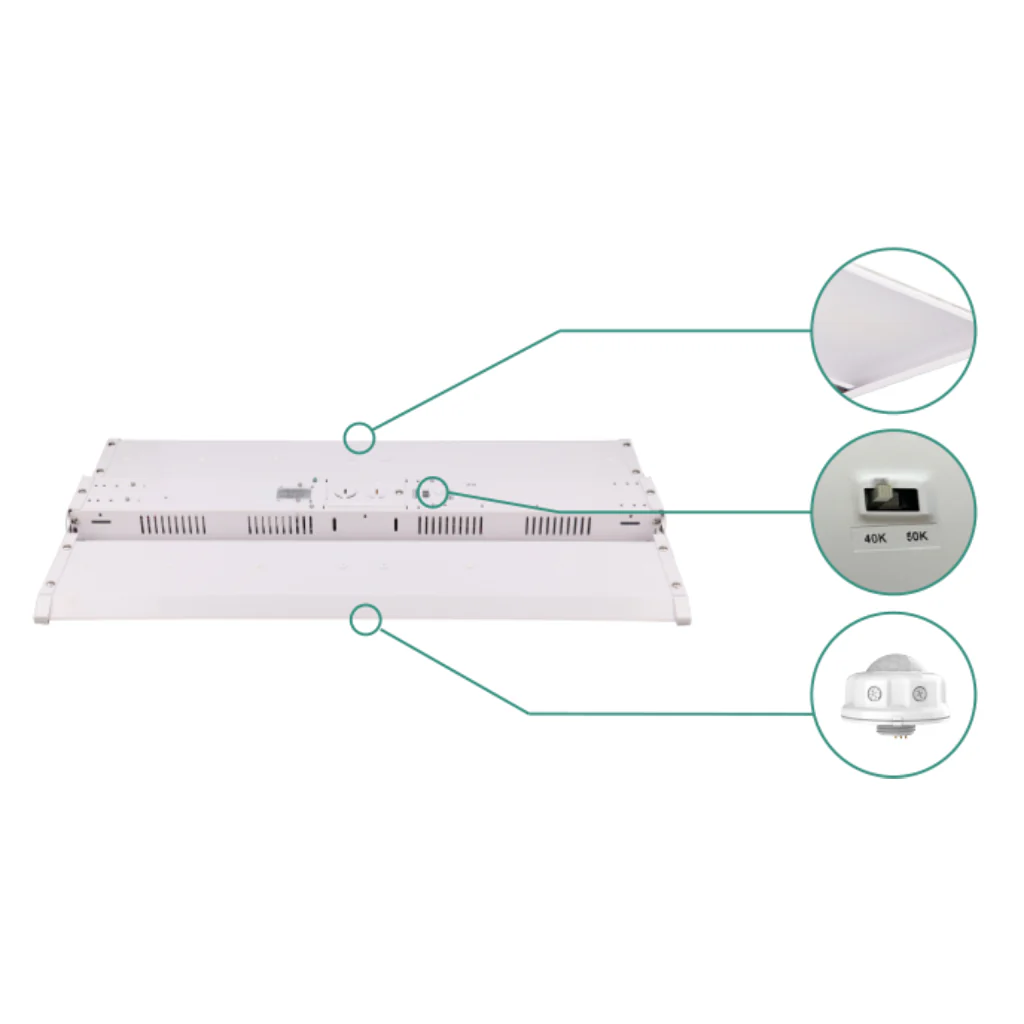

3 seconds easily plug-in sensor

PRODUCT SPECIFICATIONS

Measurements
• 165W Model (Sensor Base): 25.9" L × 12.6" W × 2.76" H – 7.72 lbs
• 220W Model (Sensor Base): 25.98" L × 14.96" W × 2.76" H – 9.26 lbs
• 300W Model (Sensor Base): 25.98" L × 14.96" W × 2.76" H – 9.26 lbs

Materials
• Housing: Not specified (standard steel/aluminum body typical for high bays)
• Finish: White

Wire
• Voltage: AC120–277V
• Dimming: 0–10V Dimmable

Specs
• Input Watts:
• 165W Model: 130W / 150W / 165W adjustable
• 220W Model: 180W / 200W / 220W adjustable
• 300W Model: 255W / 275W / 300W adjustable
• Lumens:
• 165W Model: up to 23,100lm
• 220W Model: up to 30,800lm
• 300W Model: up to 42,000lm
• CCT: 4000K | 5000K
• DLC Premium | 140 lm/W
• UL Certified
