LED Back-Lit Panel (Sensor Base/ 9W EM)
The LED Back-Lit Panel (Sensor Base/ 9W EM) offers high-efficiency lighting with selectable wattage and CCT, ideal for offices, schools, and commercial ceilings. Available in 2×2, 1×4, and 2×4 sizes, it delivers up to 9,000 lumens at 130 lm/W. Each panel supports sensor base options (2.5mm / 3.5mm) and an optional 9W emergency backup. With color tuning from 3500K to 6500K, it adapts to any setting. ETL certified and DLC 5.1 Premium listed for trusted performance.
- Sensor base
- Integrative aluminum frame provides a durability structure
- 5 Wattage and 5 CCT selectable switches are integrated on the driver
- ETL listed and DLC5.1 Premium
Measurements
• 2×2 Panel: 24" L × 24" W × 2" H – 16.23 lbs (4 pcs / CTN)
• 1×4 Panel (Sensor Base): 12" L × 47" W × 6" H – 39.3 lbs (4 pcs / CTN)
• 2×4 Panel: 47" L × 24" W × 2" H – 39.3 lbs (4 pcs / CTN)
Materials
• Housing: Steel + Polycarbonate
• Finish: White
Specs
• Input Watts:
• 2×2 Panel: Selectable 15W / 20W / 25W / 30W / 40W
• 1×4 Panel: Selectable 15W / 20W / 25W / 30W / 40W
• 2×4 Panel: Selectable 30W / 40W / 50W / 60W / 72W
• Lumens:
• 2×2 Panel: 1,950–5,000lm
• 1×4 Panel: 1,950–5,000lm
• 2×4 Panel: 3,900–9,000lm
• CCT: 3500K | 4000K | 5000K | 5700K | 6500K (Selectable)

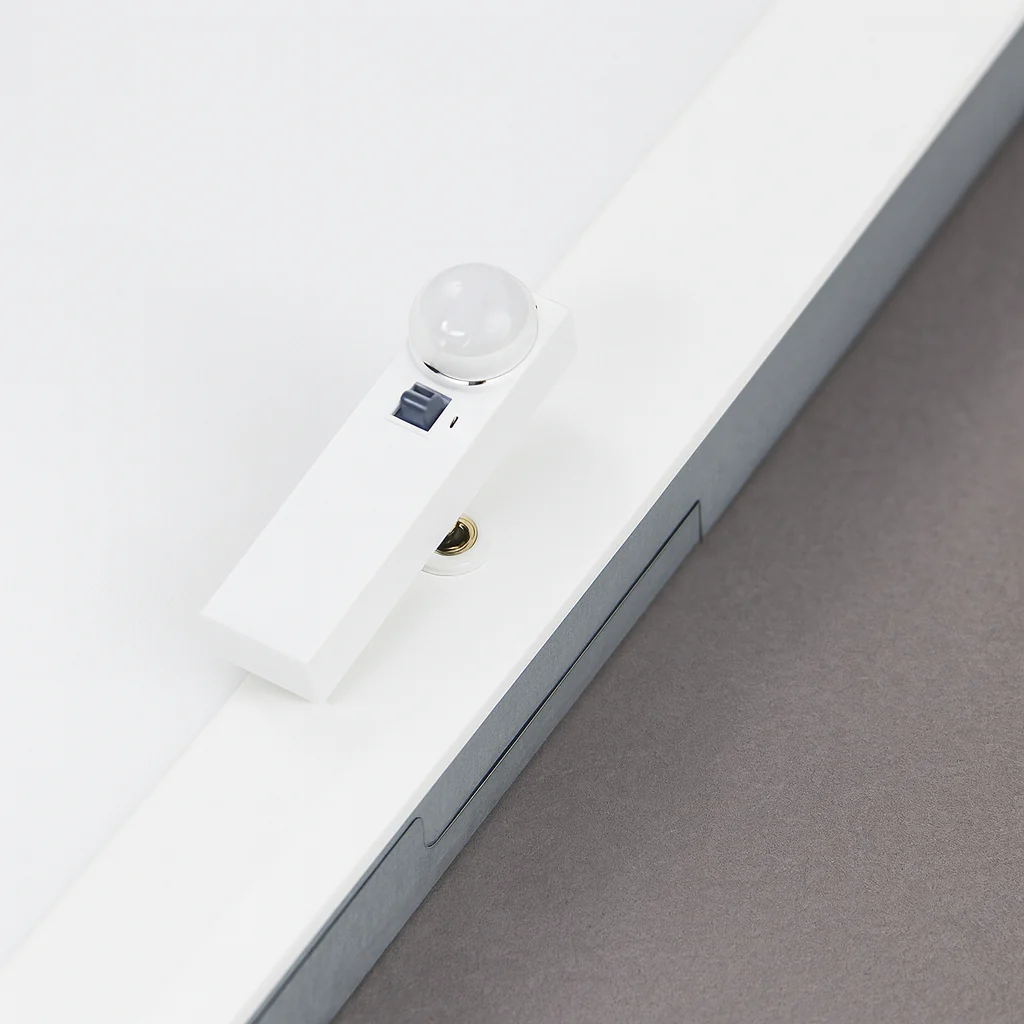

• Options Available: Sensor Base (2.5mm / 3.5mm) | Pre-installed 9W EM
• DLC 5.1 Premium | 130 lm/W
• ETL Certified
